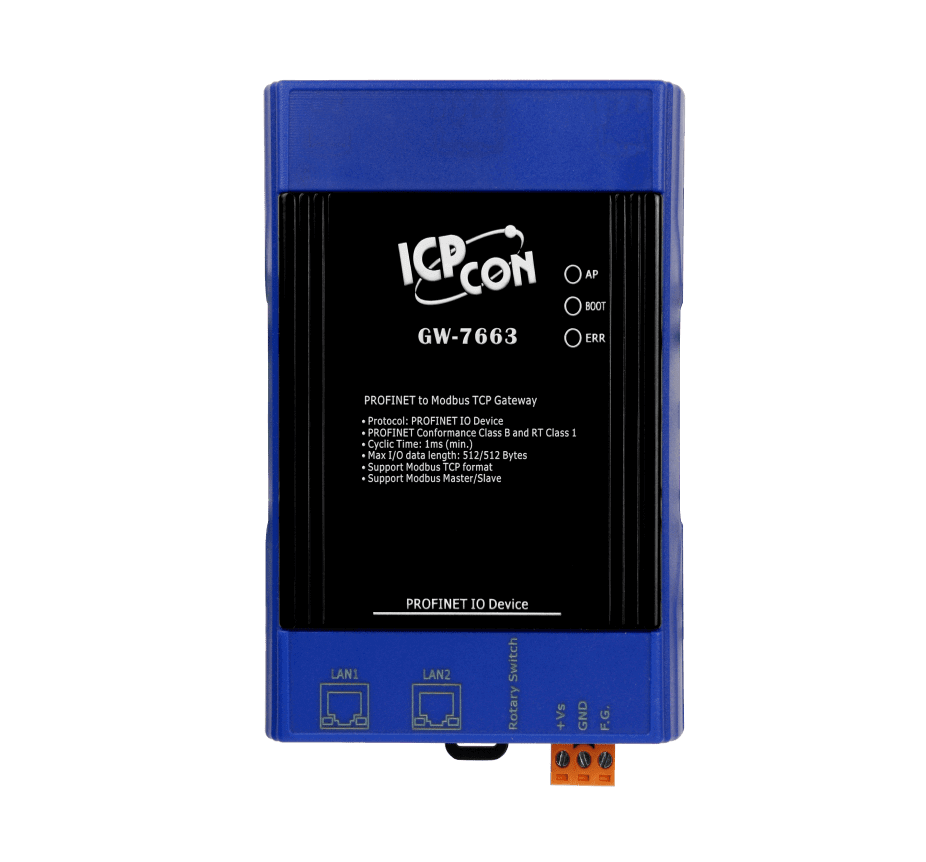

GW-7663

  • Protocol: PROFINET IO Device
  • PROFINET Conformance Class B and RT Class 1
  • Cyclic Time: 1ms (min)
  • Generic GSDML File Provided (Version 2.25)
  • Max length of input/output data is 512/512 Bytes
  • Support Modbus Master and Slave mode
  • 4 kV Contact ESD protection for any terminal

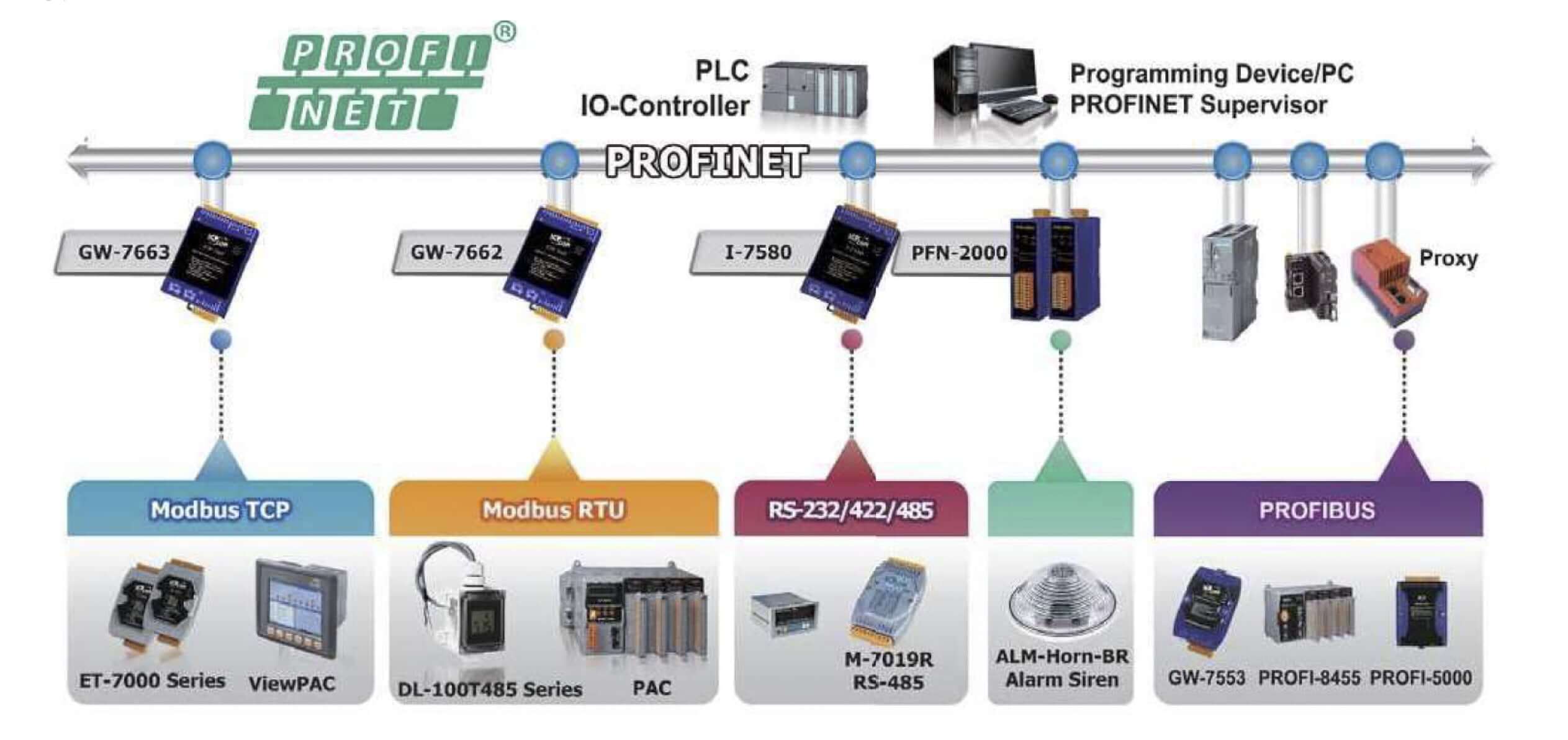

PROFINET Product Solutions

ICP DAS has been deeply involved in PROFINET technology for many years, and has developed a series of PROFINET products, including converters, gateways and remate I/0 modules. We provide complete hardware solutions to meet various PROFINET applications, help you salve problems related to data acquisition, communication protocol conversion and communication interface conversion, etc., so that you can easily complete various PROFINET application projects.

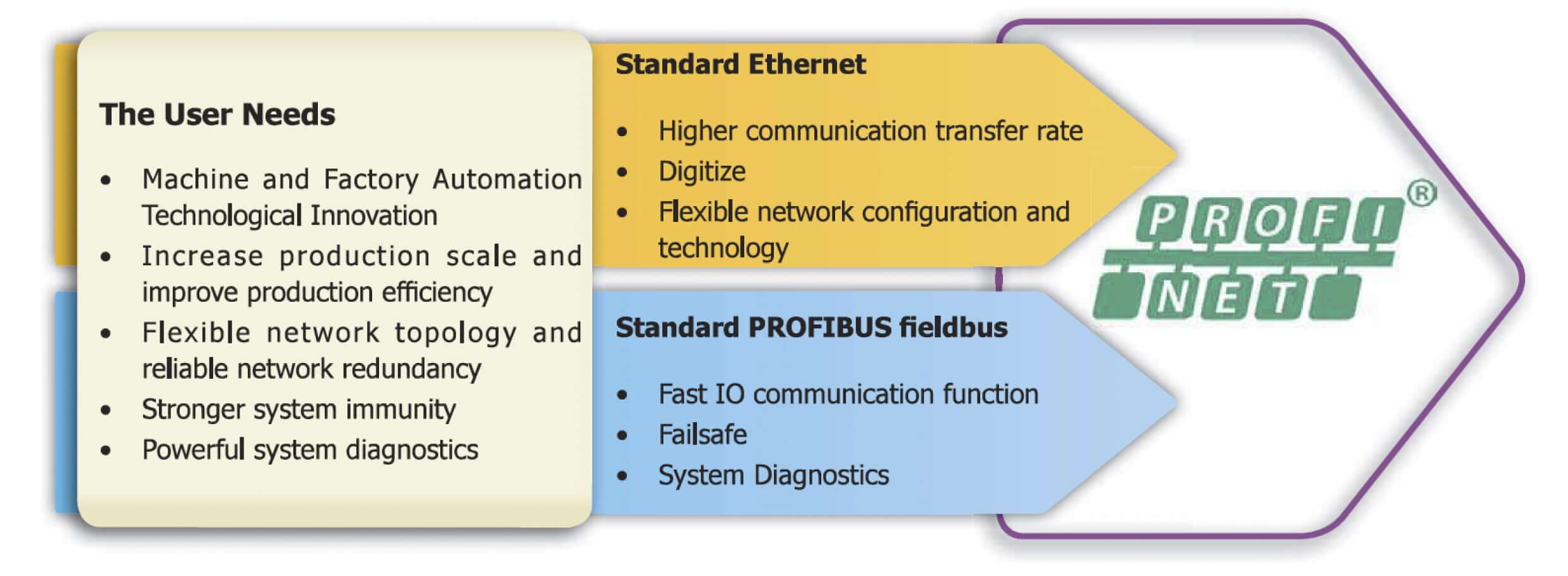

PROFINET Introduction and Benefits

PROFINET is an open Industrial Ethernet solution based on international standards. It is a communication protocol designed to exchange data between controllers and devices in an automation setting. It was introduced by PROFIBUS International (PI) with four decisive advantages: openness, flexibility, high efficiency and high performance. PROFINET provides a complete network solution in the field of automation, which integrates applications such as Ethernet, motion control, distributed systems, process automation, and factory automation. In addition, it is compatible with Ethernet and various field bus systems, such as: PROFIBUS DP, PROFIBUS PA, Interbus, etc., without changing the field equipment.

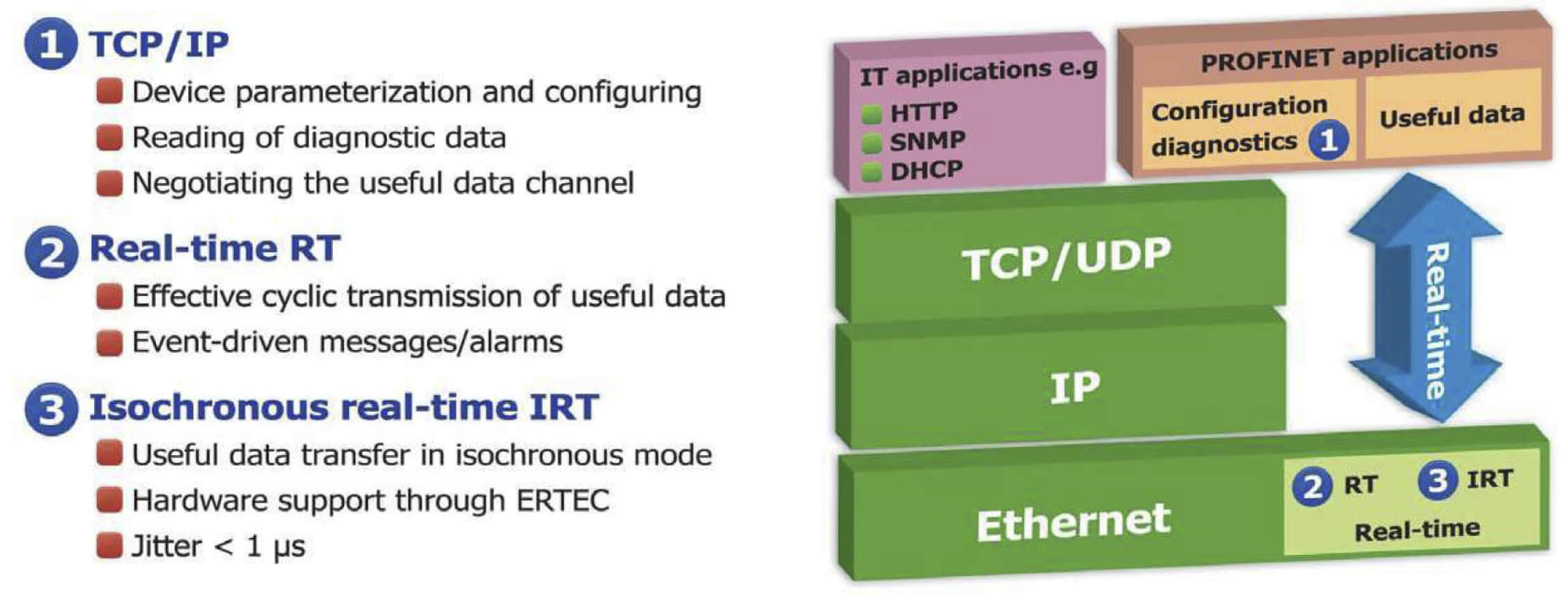

PROFINET Channel Description

ICP DAS has been deeply involved in PROFINET technology for many years, and has developed a series of PROFINET products, including converters, gateways and remate I/0 modules. We provide complete hardware solutions to meet various PROFINET applications, help you salve problems related to data acquisition, communication protocol conversion and communication interface conversion, etc., so that you can easily complete various PROFINET application projects.

PROFINET NRT (Non-Real-Time)
It uses standard protocols as UDP/IP. With response time approx. 100 ms PROFINET NRT targets far applications in process automation.

PROFINET RT (Real-Time)
Far applications with higher requirements on cycle time like factory automation, it directly uses the Ethernet protocol to exchange 1/0 data, while diagnosis and configuration uses standard UDP/IP. PROFINET RT enables applications with response time approx. 10 ms.

PROFINET IRT (lsochronous Real-Time)
The highest requirements come from the control of complex industrial drive systems, like packaging machines or robotics. With applications with cycle time < 1 ms and jitter < 1 µs are possible.

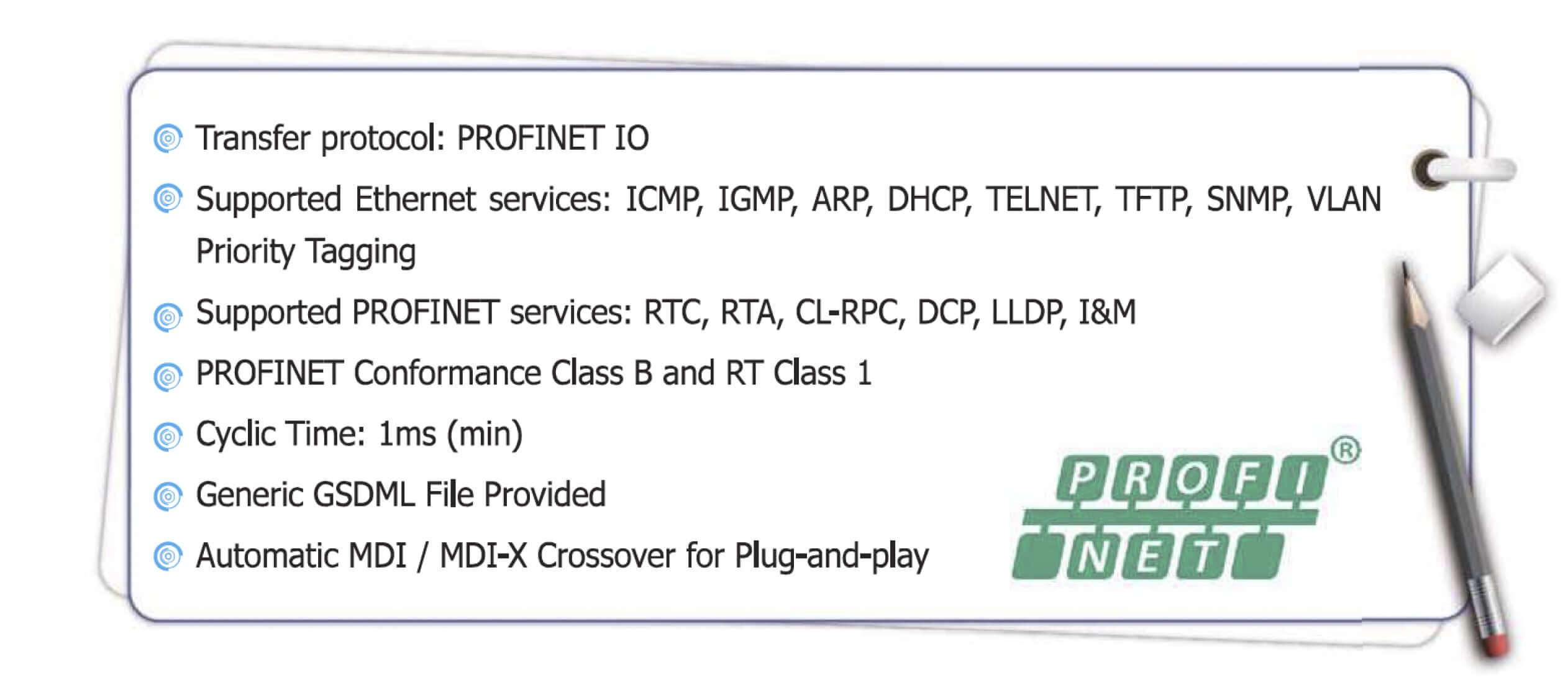

PROFINET Product Features
