GW-7472

  • Easy firmware update via Ethernet
  • Removable terminal block connector
  • Tiny form-factor and low power consumption
  • Ethernet Protocol: EtherNet/IP adapter
  • Maximum number of connections for Explicit Messages: 6
  • Maximum number of connections for Implicit Messages: 1
  • Supported I/O connection methods:
    • Transport and trigger: Exclusive-Owner, Cyclic
    • Originator to Target Type: POINT2POINT
    • Target to Originator Type: POINT2POINT, MULTICAST
  • EtherNet/IP Input/Output command data size: maximum 500 bytes
  • Modbus Protocol: Modbus RTU Master
  • Maximum support 30 Modbus RTU commands
  • Maximum support 10 Modbus TCP servers
  • Maximum support 8 Modbus commands for each one Modbus TCP server
  • Supported Modbus RTU Function Codes: 01,02,03,04,0F,10
  • Maximum data size of one Modbus command: 240 bytes

Features

Various Topologies

EIP series provides Ethernet port. It provides Star/Bus/Daisy Chain/Ring topology connections to accelerate field expansion and production line change management. It is compatible with IT networks, but it can be easily set up without professional IT technicians.

Data Exchange

Provide a parameter integration setting interface for quick configuration and import.

Applications

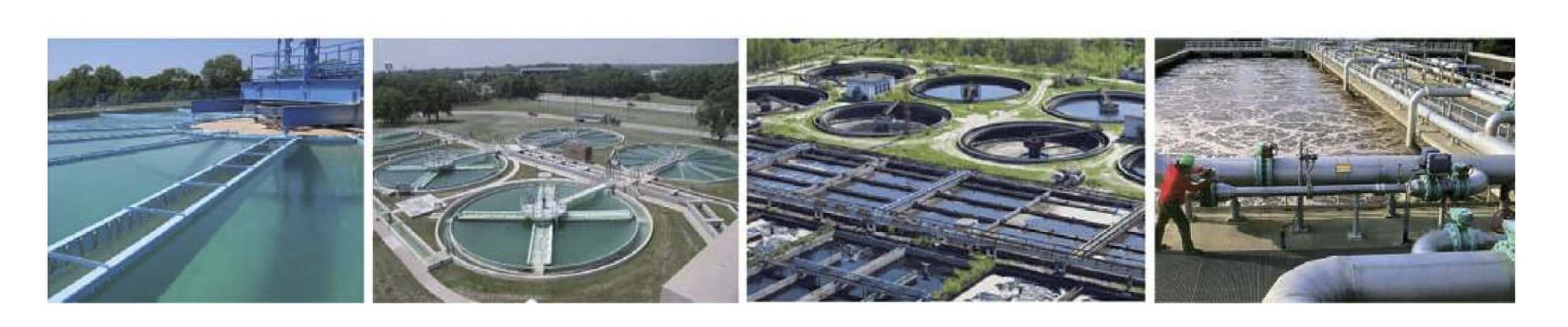

The application of sewage treatment plant is getting more and more important. The sewage treatment plant needs to reconstruct the control system. We provide a GW-7472 solution AB PLC (Allen-Bradley ControlLogix 5563 via 1756-ENBT) convert the data between EtherNet/IP and Modbus.
In the control room, GW-7472 gets the motors, meters and sensors information and publishes these data to PLC. PLC can also transmit data to the Modbus device via GW-7472.The power consumption status can also be monitored through the PM-3133-100P-EIP to ensure the quality of water service operation.

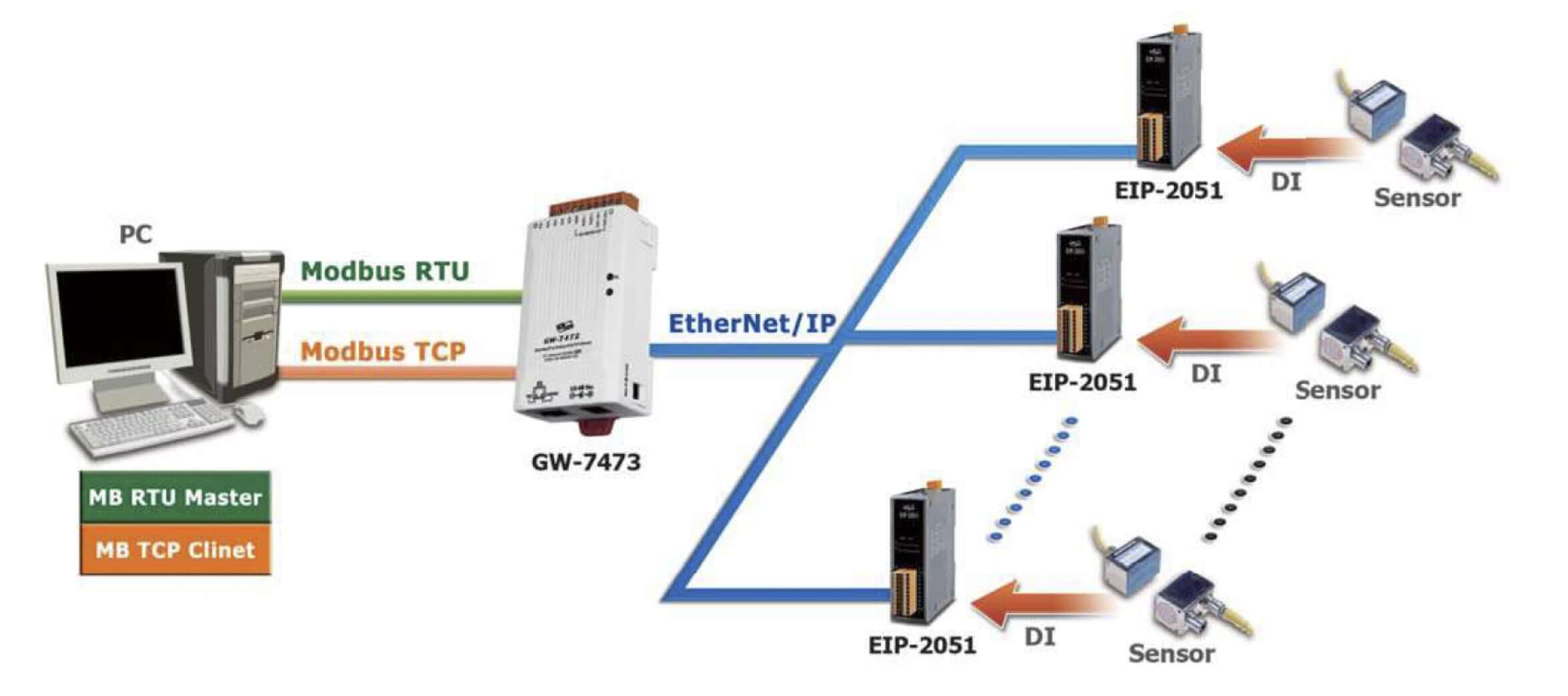

In the screw factory, screws and other components need to be counted at the same time. ICP DAS provides GW-7473 and EIP-2000 module solutions, so that the user does not need to use PLC as the EtherNet/IP host. The EIP-2000 module can receive I/O status messages and publish the messages to GW-7473, and the owner can use Modbus RTU or Modbus TCP on the PC to read the data.
